³¹P MAS NMR of crystalline Na2PO4 (CSA)¶
In this example, we illustrate the use of the mrsimulator objects to
create a CSA fitting model using Simulator and SignalProcessor objects,
use the fitting model to perform a least-squares analysis, and
extract the fitting parameters from the model.
We use the LMFIT library to fit the spectrum. The following example shows the least-squares fitting procedure applied to the \(^{31}\text{P}\) MAS NMR spectrum of \(\text{Na}_{2}\text{PO}_{4}\). The following experimental dataset is a part of DMFIT [1] examples. We thank Dr. Dominique Massiot for sharing the dataset.
Start by importing the relevant modules.
import csdmpy as cp
import matplotlib.pyplot as plt
from lmfit import Minimizer
from mrsimulator import Simulator, SpinSystem, Site
from mrsimulator.method.lib import BlochDecaySpectrum
from mrsimulator import signal_processor as sp
from mrsimulator.utils import spectral_fitting as sf
from mrsimulator.utils import get_spectral_dimensions
from mrsimulator.spin_system.tensors import SymmetricTensor
Import the dataset¶
Import the experimental data. We use dataset file serialized with the CSDM file-format, using the csdmpy module.
host = "https://nmr.cemhti.cnrs-orleans.fr/Dmfit/Help/csdm/"
filename = "31P Phosphate 6kHz.csdf"
experiment = cp.load(host + filename)
# standard deviation of noise from the dataset
sigma = 1.523217
# For spectral fitting, we only focus on the real part of the complex dataset
experiment = experiment.real
# Convert the dimension coordinates from Hz to ppm.
experiment.x[0].to("ppm", "nmr_frequency_ratio")
# plot of the dataset.
plt.figure(figsize=(4.25, 3.0))
ax = plt.subplot(projection="csdm")
ax.plot(experiment, color="black", linewidth=0.5, label="Experiment")
ax.set_xlim(150, -150)
plt.grid()
plt.tight_layout()
plt.show()
Create a fitting model¶
A fitting model is a composite of Simulator
and SignalProcessor
objects.
Step 1: Create initial guess sites and spin systems
P_31 = Site(
isotope="31P",
isotropic_chemical_shift=5.0, # in ppm,
shielding_symmetric=SymmetricTensor(zeta=-80, eta=0.5), # zeta in Hz
)
spin_systems = [SpinSystem(sites=[P_31])]
Step 2: Create the method object. Create an appropriate method object that closely resembles the technique used in acquiring the experimental dataset. The attribute values of this method must meet the experimental conditions, including the acquisition channels, the magnetic flux density, rotor angle, rotor frequency, and the spectral/spectroscopic dimension.
In the following example, we set up a Bloch decay spectrum method where the
spectral/spectroscopic dimension information, i.e., count, spectral_width, and the
reference_offset, is extracted from the CSDM dimension metadata using the
get_spectral_dimensions()
utility function. The remaining
attribute values are set to the experimental conditions.
# get the count, spectral_width, and reference_offset information from the experiment.
spectral_dims = get_spectral_dimensions(experiment)
MAS = BlochDecaySpectrum(
channels=["31P"],
magnetic_flux_density=9.395, # in T
rotor_frequency=6000, # in Hz
spectral_dimensions=spectral_dims,
experiment=experiment, # experimental dataset
)
# A method object queries every spin system for a list of transition pathways that are
# relevant to the given method. Since the method and the number of spin systems remains
# unchanged during the least-squares analysis, a one-time query is sufficient. To avoid
# querying for the transition pathways at every iteration in a least-squares fitting,
# evaluate the transition pathways once and store it as follows
for sys in spin_systems:
sys.transition_pathways = MAS.get_transition_pathways(sys)
Step 3: Create the Simulator object and add the method and spin system objects.
Step 4: Create a SignalProcessor class object and apply the post-simulation signal processing operations.
processor = sp.SignalProcessor(
operations=[
sp.IFFT(),
sp.apodization.Exponential(FWHM="0.3 kHz"),
sp.FFT(),
sp.Scale(factor=300),
sp.baseline.ConstantOffset(offset=-2),
]
)
processed_dataset = processor.apply_operations(dataset=sim.methods[0].simulation).real
Step 5: The plot of the dataset and the guess spectrum.
plt.figure(figsize=(4.25, 3.0))
ax = plt.subplot(projection="csdm")
ax.plot(experiment, color="black", linewidth=0.5, label="Experiment")
ax.plot(processed_dataset, linewidth=2, alpha=0.6, label="Guess Spectrum")
ax.set_xlim(150, -150)
plt.legend()
plt.grid()
plt.tight_layout()
plt.show()
Least-squares minimization with LMFIT¶
Once you have a fitting model, you need to create the list of parameters to use in the
least-squares minimization. For this, you may use the
Parameters class from LMFIT,
as described in the previous example.
Here, we make use of a utility function,
make_LMFIT_params()
, to simplifies the
LMFIT parameters generation process. By default, the function only creates parameters
from the SpinSystem and SignalProcessor objects. Often, in spectrum with sidebands,
spinning speed may not be accurately known; and is, therefore, included as a fitting
parameter. To include a keyword from the method object, use the include argument
of the function, as follows,
Step 6: Create a list of parameters.
params = sf.make_LMFIT_params(sim, processor, include={"rotor_frequency"})
The make_LMFIT_params parses the instances of the Simulator
and the
PostSimulator
objects for parameters and returns a LMFIT Parameters object.
Customize the Parameters:
You may customize the parameters list, params
, as desired. Here, we remove the
abundance parameter.
params.pop("sys_0_abundance")
print(params.pretty_print(columns=["value", "min", "max", "vary", "expr"]))
Out:
Name Value Min Max Vary Expr
SP_0_operation_1_Exponential_FWHM 0.3 -inf inf True None
SP_0_operation_3_Scale_factor 300 -inf inf True None
SP_0_operation_4_ConstantOffset_offset -2 -inf inf True None
mth_0_rotor_frequency 6000 5900 6100 True None
sys_0_site_0_isotropic_chemical_shift 5 -inf inf True None
sys_0_site_0_shielding_symmetric_eta 0.5 0 1 True None
sys_0_site_0_shielding_symmetric_zeta -80 -inf inf True None
None
Step 7: Perform the least-squares minimization. For the user’s convenience, we
also provide a utility function,
LMFIT_min_function()
, for evaluating the
difference vector between the simulation and experiment, based on
the parameters update. You may use this function directly as the argument of the
LMFIT Minimizer class, as follows,
minner = Minimizer(sf.LMFIT_min_function, params, fcn_args=(sim, processor, sigma))
result = minner.minimize()
result

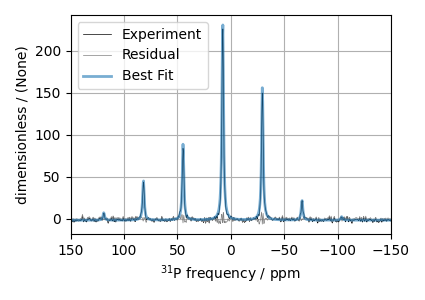

Step 8: The plot of the fit, measurement, and residuals.
# Best fit spectrum
best_fit = sf.bestfit(sim, processor)[0].real
residuals = sf.residuals(sim, processor)[0].real
plt.figure(figsize=(4.25, 3.0))
ax = plt.subplot(projection="csdm")
ax.plot(experiment, color="black", linewidth=0.5, label="Experiment")
ax.plot(residuals, color="gray", linewidth=0.5, label="Residual")
ax.plot(best_fit, linewidth=2, alpha=0.6, label="Best Fit")
ax.set_xlabel(r"$^{31}$P frequency / ppm")
ax.set_xlim(150, -150)
plt.legend()
plt.grid()
plt.tight_layout()
plt.show()
