¹¹B MAS NMR of Lithium orthoborate crystal¶
The following is a quadrupolar lineshape fitting example for the 11B MAS NMR of lithium orthoborate crystal. The dataset was shared by Dr. Nathan Barrow.
import csdmpy as cp
import matplotlib.pyplot as plt
from lmfit import Minimizer
from mrsimulator import Simulator, Site, SpinSystem
from mrsimulator.method.lib import BlochDecayCTSpectrum
from mrsimulator import signal_processor as sp
from mrsimulator.utils import spectral_fitting as sf
from mrsimulator.utils import get_spectral_dimensions
from mrsimulator.spin_system.tensors import SymmetricTensor
Import the dataset¶
host = "https://ssnmr.org/sites/default/files/mrsimulator/"
filename = "11B_lithum_orthoborate.csdf"
experiment = cp.load(host + filename)
# standard deviation of noise from the dataset
sigma = 0.08078374
# For spectral fitting, we only focus on the real part of the complex dataset
experiment = experiment.real
# Convert the coordinates along each dimension from Hz to ppm.
_ = [item.to("ppm", "nmr_frequency_ratio") for item in experiment.dimensions]
# plot of the dataset.
plt.figure(figsize=(4.25, 3.0))
ax = plt.subplot(projection="csdm")
ax.plot(experiment, "k", alpha=0.5)
ax.set_xlim(100, -100)
plt.grid()
plt.tight_layout()
plt.show()
Create a fitting model¶
Spin System
B11 = Site(
isotope="11B",
isotropic_chemical_shift=20.0, # in ppm
quadrupolar=SymmetricTensor(Cq=2.3e6, eta=0.03), # Cq in Hz
)
spin_systems = [SpinSystem(sites=[B11])]
Method
# Get the spectral dimension parameters from the experiment.
spectral_dims = get_spectral_dimensions(experiment)
MAS_CT = BlochDecayCTSpectrum(
channels=["11B"],
magnetic_flux_density=14.1, # in T
rotor_frequency=12500, # in Hz
spectral_dimensions=spectral_dims,
experiment=experiment, # add the measurement to the method.
)
# Optimize the script by pre-setting the transition pathways for each spin system from
# the method.
for sys in spin_systems:
sys.transition_pathways = MAS_CT.get_transition_pathways(sys)
Guess Model Spectrum
# Simulation
# ----------
sim = Simulator(spin_systems=spin_systems, methods=[MAS_CT])
sim.run()
# Post Simulation Processing
# --------------------------
processor = sp.SignalProcessor(
operations=[
sp.IFFT(),
sp.apodization.Exponential(FWHM="100 Hz"),
sp.FFT(),
sp.Scale(factor=200),
]
)
processed_dataset = processor.apply_operations(dataset=sim.methods[0].simulation).real
# Plot of the guess Spectrum
# --------------------------
plt.figure(figsize=(4.25, 3.0))
ax = plt.subplot(projection="csdm")
ax.plot(experiment, "k", linewidth=1, label="Experiment")
ax.plot(processed_dataset, "r", alpha=0.75, linewidth=1, label="guess spectrum")
ax.set_xlim(100, -100)
plt.grid()
plt.legend()
plt.tight_layout()
plt.show()
Least-squares minimization with LMFIT¶
Use the make_LMFIT_params()
for a quick
setup of the fitting parameters.
params = sf.make_LMFIT_params(sim, processor)
params.pop("sys_0_abundance")
print(params.pretty_print(columns=["value", "min", "max", "vary", "expr"]))
Out:
Name Value Min Max Vary Expr
SP_0_operation_1_Exponential_FWHM 100 -inf inf True None
SP_0_operation_3_Scale_factor 200 -inf inf True None
sys_0_site_0_isotropic_chemical_shift 20 -inf inf True None
sys_0_site_0_quadrupolar_Cq 2.3e+06 -inf inf True None
sys_0_site_0_quadrupolar_eta 0.03 0 1 True None
None
Solve the minimizer using LMFIT
minner = Minimizer(sf.LMFIT_min_function, params, fcn_args=(sim, processor, sigma))
result = minner.minimize()
result

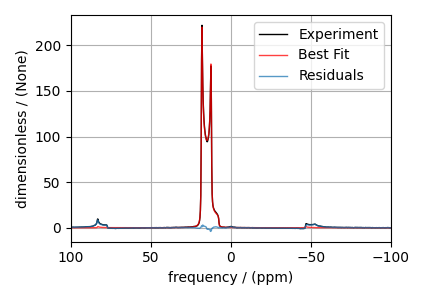

The best fit solution¶
best_fit = sf.bestfit(sim, processor)[0].real
residuals = sf.residuals(sim, processor)[0].real
# Plot the spectrum
plt.figure(figsize=(4.25, 3.0))
ax = plt.subplot(projection="csdm")
ax.plot(experiment, "k", linewidth=1, label="Experiment")
ax.plot(best_fit, "r", alpha=0.75, linewidth=1, label="Best Fit")
ax.plot(residuals, alpha=0.75, linewidth=1, label="Residuals")
ax.set_xlim(100, -100)
plt.grid()
plt.legend()
plt.tight_layout()
plt.show()
Total running time of the script: ( 0 minutes 2.244 seconds)
